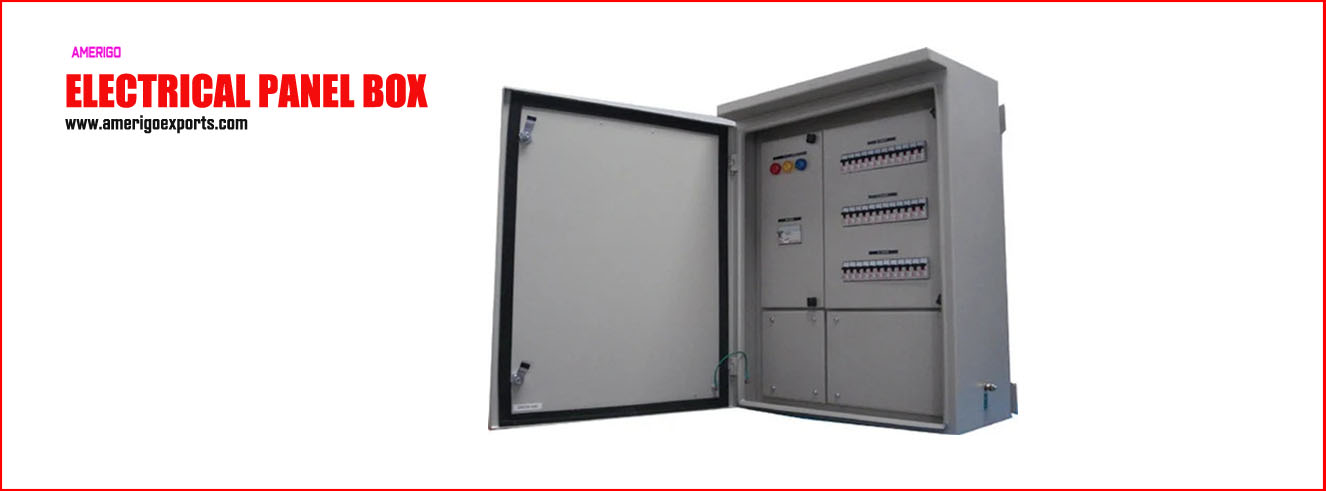

Explore our best quality Electrical Panel Boxes with best quality material and heat resistant panel boxes. Our electrical panel boxes distributes electrical power from the main supply to different circuits, machines, equipment, and areas within a building or industrial facility. Panels ensure safe operation of connected devices by maintaining controlled and stable power supply, preventing equipment damage and electrical fires. The electrical panel acts as a central hub where operators can Switch ON/OFF circuits, isolate faulty lines and monitors the power flow.
Features - Electrical Panel Box
1. Strong Enclosure Material: Made from MS (Mild Steel), Stainless Steel, Aluminium or FRP material. Ensures protection from physical impact, moisture, and corrosion.
2. Safety Protection : Provides circuit protection through MCBs, MCCBs, fuses, and relays. Prevents overload, short-circuit, and electrical fire risks.
3. Organized Wiring System: Internal layout supports neat, color-coded, and safe wiring. Includes cable glands, bus bars, neutral links, and earthing terminals.
4. Weather & Dust Protection: Available in IP-rated enclosures (IP54, IP55, IP65, IP66) for outdoor and industrial use. Protects from dust, rain, and harsh conditions.
5. Customizable Design: Can be customized based on application: Distribution Board (DB), Control Panel, Motor Control Center (MCC), Power Control Center (PCC). Option for window doors, powder coating, ventilation fans, etc.
6. Easy Maintenance: Modular construction allows quick access to breakers and devices. Clear labeling for easy troubleshooting.
7. High Durability and Long Life: Powder-coated or galvanized finish. Rust-proof and suitable for long-term industrial operation.
8. Space for Expansion: Panels provide additional slots for future load or equipment upgrades.
9. Fire-Resistant Components: Use of fire-retardant materials, insulated busbars, and safe wiring channels.
10. Enhanced Control & Monitoring can include: Meters (voltage, current), Indicators (LEDs), Digital controllers, Alarms & sensors.
Technical Specifications of Electrical Panel Boxes:
1. Material Construction: Sheet Metal: CRCA (Cold Rolled Close Annealed) steel (1.2–2.0 mm thick). Stainless Steel: SS304 / SS316 for corrosive environments. Aluminium / FRP: For lightweight or chemical-prone areas. Surface Finish: Powder-coated (60–80 microns), epoxy coating, or anti-corrosive paint.
2. Enclosure Rating : Ingress Protection (IP Rating): IP42 / IP44 – indoor applications. IP54 – dust protected. IP55 – moderate dust & water exposure. IP65 / IP66 – outdoor, waterproof, and dust-tight.
3. Electrical Ratings: Operating Voltage: 230V AC single phase, 415V AC three phase, Custom voltages for industrial systems. Rated Current: 32A to 6300A (depends on application). Short-Circuit Withstand Capacity (ICW): 16kA / 25kA / 35kA / 50kA / 65kA. Frequency: 50/60 Hz. Insulation Voltage: Typically 690V.
4. Busbar Specifications: Material: Electrolytic copper (EC grade) / Aluminium. Busbar Rating: 100A – 6000A Busbar Coating: Heat-shrink sleeve / epoxy insulation / PVC coating. Temperature Rise: Max 35–40°C above ambient. Short Circuit Rating: Up to 65kA for 1 sec.
5. Internal Components (Depending on panel type): MCB / MCCB / ACB breakers. Isolators, Contactors & relays, PLC / VFD / SMPS, Energy meters / CTs / PTs, Surge protection devices (SPD), Terminal blocks, Cable ducts & ferruling.
